printeRAcK
A rack built with 3d printed parts.
This mount was originally designed to set a Microdelta Rework (3d model) on a pole.
» View project on Thingiverse «
Objective
Starting point :
To build a hanging rack that does not alter its support.
Constraints :
Modularity, aesthetics, scalability.
Modeling :

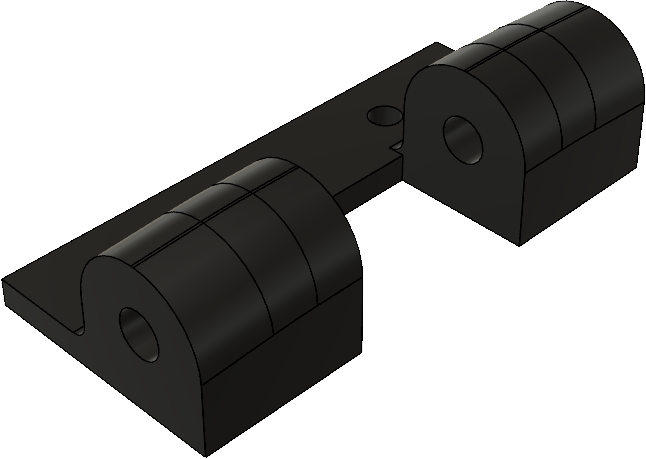

3d printed parts
Wood parts
Hardware
| Part | Qty | |
|---|---|---|
| Threaded shaft M8x1000 |  |
2 |
| Threaded shaft M8x555 | |
2 |
| Threaded shaft M8x500 | |
8 |
| Threaded shaft M8x400 | |
1 |
| Threaded shaft M8x300 | |
1 |
| Threaded shaft M8x120 | |
1 |
| Screw M6x25 |  |
8 |
| Screw hex head M8x50 |  |
1 |
| Washer M8 |  |
69 |
| Washer M6 |  |
8 |
| Washer spring M8 |  |
43 |
| Nut M8 |  |
71 |
| Nut M6 | |
8 |
| Wing nut M8 |  |
1 |
Design details
Accessories

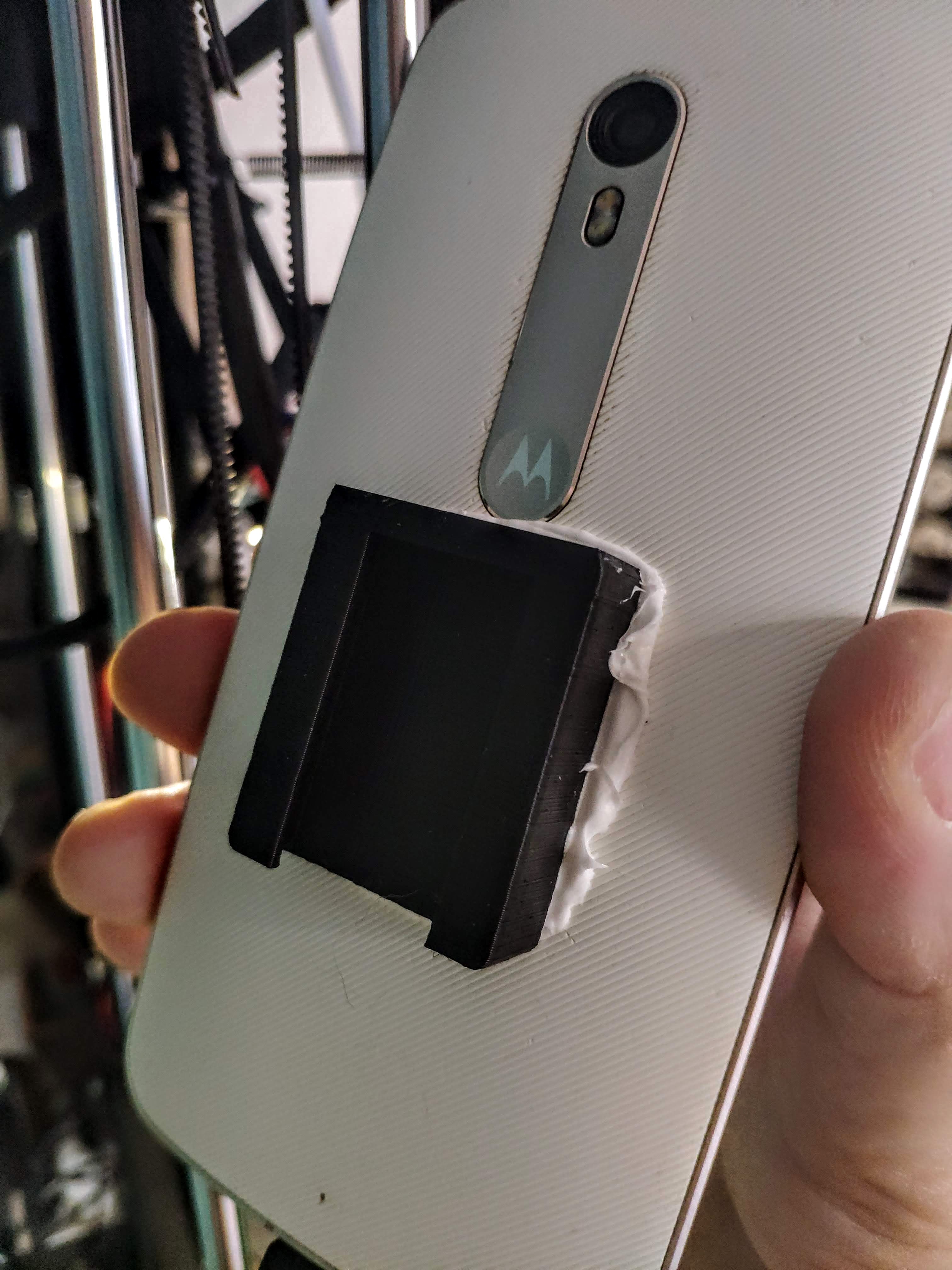

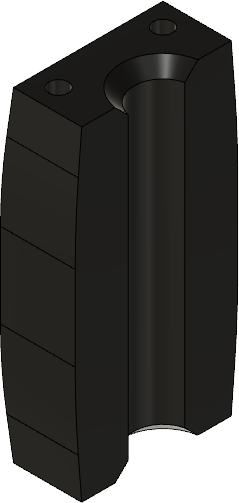

Smartphone dock
| Part | Qty | |
|---|---|---|
| Screw M3x10 |  |
4 |
| Spring 6x20 |  |
2 |
Building irl
